Technical Specifications

1. General Information

• Model Number: SH-CX040TP

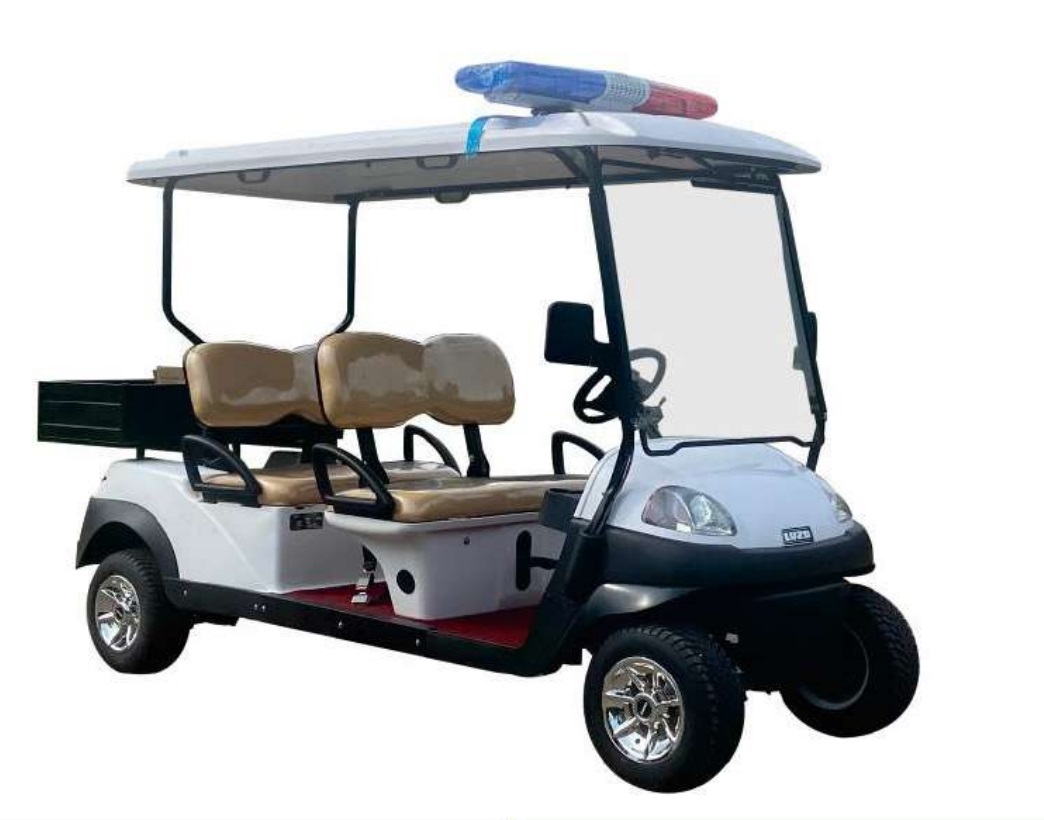

• Type: 4-Seater Electric Patrol Vehicle

• Primary Applications:
  ✓ Corporate campus security
  ✓ Airport/Seaport perimeter patrol
  ✓ Industrial complex surveillance
  ✓ Resort & hotel property security
  ✓ University campus public safety
  ✓ Government facility protection

2. Power & Performance

• Motor: 72V High-torque AC motor (8kW peak)

• Battery: 6×12V Maintenance-free deep cycle

• Operating Range: 60-80 km per charge

• Charging System: Smart 3-stage charger

• Charge Time: 8-10 hours (50% fast charge in 4h)

• Max Speed: 30 km/h (programmable limiter)

3. Chassis & Body

• Frame: Reinforced steel safety cage

• Body: Impact-resistant polymer panels

• Dimensions (L×W×H): 3150 × 1200 × 2080 mm

• Wheelbase: 2100 mm

• Ground Clearance: 220 mm

• Curb Weight: 520 kg

• Payload Capacity: 400 kg

4. Safety & Control

• Braking System:
  ✓ 4-wheel hydraulic discs
  ✓ Regenerative braking
  ✓ Emergency parking brake

• Lighting:
  ✓ LED headlights with high beam
  ✓ 360° emergency lighting

• Instrumentation:
  ✓ Digital dashboard
  ✓ Battery management system

Professional Features

✔ Extended Patrol Range – Covers large properties efficiently
✔ All-Weather Operation – Waterproof electrical system
✔ Enhanced Visibility – 360° warning lights
✔ Quiet Surveillance – Silent electric operation
✔ Smart Charging – Battery protection system

Standard Security Equipment

• Lockable weapon/equipment rack

• Emergency siren controls

• 12V/24V power outlets

• Reflective safety markings

• Weatherproof radio mounting

Optional Professional Packages

1. Advanced Security Package

• 360° camera system with recording

• License plate recognition

• Remote GPS tracking

2. Command Center Package

• Mobile computer workstation

• Enhanced communications array

• Emergency medical storage

3. Tactical Response Package

• Reinforced push bumper

• Spotlight with thermal imaging

• Equipment mounting rails

Operational Advantages

• 70% quieter than diesel alternatives

• 55% lower operating costs

• Zero emission operation

• 24/7 readiness with spare batteries

Maintenance & Support

• Service Interval: 300 operating hours

• Warranty: 3 years chassis / 1 year battery

• Training: On-site operator certification

Compliance & Certification

• CE, EMC certified

• IP54 water/dust resistance

• Meets security vehicle standards

This specification presents your patrol vehicle as a premium security solution with:

1. Clear technical differentiators

2. Professional-grade security features

3. Customization options

4. Strong ROI messaging
