Technical Specifications

1. General Information

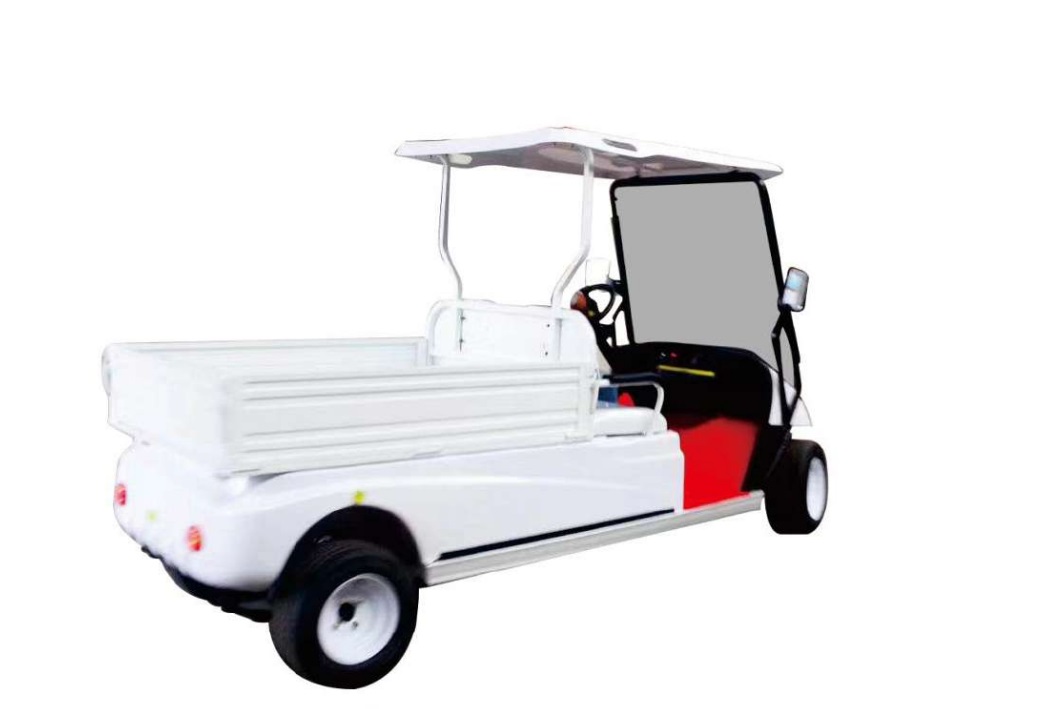

• Model Number: SH-GL020TH

• Vehicle Type: Electric Utility Carrier

• Capacity: 2 Operators + Cargo

• Primary Applications:
  ✓ Golf course maintenance
  ✓ Resort/hotel logistics
  ✓ Factory part transportation
  ✓ Campus utility services
  ✓ Airport baggage handling
  ✓ Warehouse material movement

2. Powertrain & Performance

• Motor: 48V AC (5kW continuous)

• Battery: 4×12V Maintenance-free

• Range: 60-80 km per charge

• Charging: Smart 3-stage (8-10h full charge)

• Max Speed: 25 km/h (adjustable)

• Gradeability: 15° with full load

3. Dimensions & Capacity

• Overall Size: 3150×1220×1880mm

• Curb Weight: 550kg

• Cargo Bucket: 1450×1100×300mm

• Payload Capacity: 500kg

• Ground Clearance: 180mm

4. Structural Design

• Frame: High-tensile steel with reinforced joints

• Body: UV-stabilized polymer panels

• Loading Area:
  ✓ Diamond-plate steel floor
  ✓ Removable side panels
  ✓ Tie-down points (4x)

Key Operational Features

✔ Dual-Purpose Design – Carry both personnel and materials
✔ Easy Loading – Low-profile bucket design
✔ All-Day Runtime – Swappable battery option
✔ Quiet Operation – <60dB noise level
✔ Low Maintenance – No belts/chains to replace

Standard Equipment

• 12V accessory power port

• Digital battery gauge

• Non-slip step plates

• LED work lights

• Parking brake indicator

Optional Configurations

1. Maintenance Package

• Tool rack system

• Utility box mounts

• Sprayer tank compatibility

2. Hospitality Package

• Cushioned seat upgrade

• Weather canopy

• Food storage compartments

3. Industrial Package

• Heavy-duty dump mechanism

• Forklift attachment points

• Hazard light system

Why Choose This Carrier?

• 35% More Efficient than manual carts

• Zero Emissions for indoor/outdoor use

• Customizable for specific workflows

• Cost Effective – 70% savings vs gas vehicles

Maintenance & Support

• Service Interval: 500 hours

• Warranty: 2 years frame / 1 year battery

• Training: 1-hour operational orientation
